/// 8 ch. Digital to Analog Converter

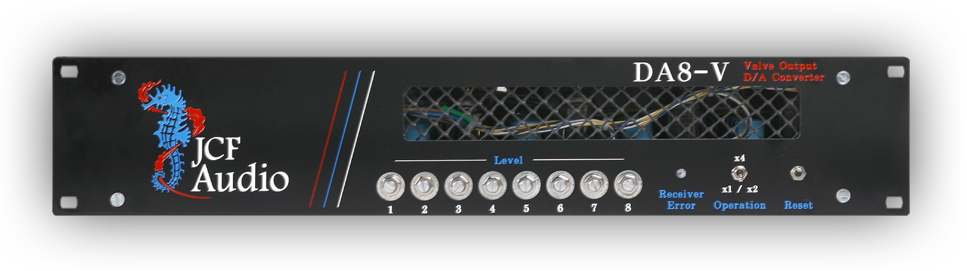

The JCF Audio DA8-V is a Digital to Analog Converter like no other. The DA8-V offers a unique combination of modern digital conversion and vintage analog line circuitry to provide a multi-channel output solution of irreproachable quality. Its robust design and top-notch Cinemag CM9600-T output iron gives the DA8-V an effortless clarity unsurpassed among converters. As the picture suggests, the DA8-V yields a sound that must be weighed to be believed.
Features
- 351 inspired output stage
- Simple self-clocking operation @ all frequencies
- 1 additional courtesy turn-around DB25 AES port
- ~20dB front panel calibration range control
- Sensible output stage current for good performance and long tube life
- Cinemag CM9600-T output transformer
- Uses common tubes 12AX7, 12AU7
- Ships with 5′ standard AES crossover cable
- 1 year limited warranty
Specifications
| Number of Channels | 8 |
| Digital Input | 110 Ohm transformer coupled AES/EBU compatible Single-Wire Operation Only |
| Output Impedance | < 40 Ohms |
| Minimum Recommended Load | 600 Ohms or greater |
| Maximum Output Level | +32dBu rms |
| Distortion | <.01% @ +4dBu, 0.025 % @ +28dBu |
| Noise | -70dBu (BW lim 80kHz) |
| Power Supplies | 2 external (1 analog, 1 digital) ~100W idle cons. |
| Tube Compliment | 8 x 12AX7 – 8 x 12AU7 – 1 x 5R4 |
